Home > Other woodworking machines >

4 sided molder cross table for milling

Product Categories

QINGDAO KING WING MACHINERY CO.,LTD

Contact Now

Brand Name : KCARPENTER

Model Number : MB4015D

Certification : CE

Place of Origin : Shandong, China

MOQ : 1 SET

Price : 5000-9000USD/SET

Payment Terms : TT/ LC

Supply Ability : 30 sets a month

Delivery Time : 15 days

Packaging Details : Plywood box

Contact Now

4 sided molder cross table for milling

How to choose a four sides moulder?

According to wood block different width
According to different pattern thickness of wood mouldings, if pattern too deep you can choose 2 cutters in frount

4 sided molder cross table for milling

What this four side moulder can do?

4 sided molder cross table for milling

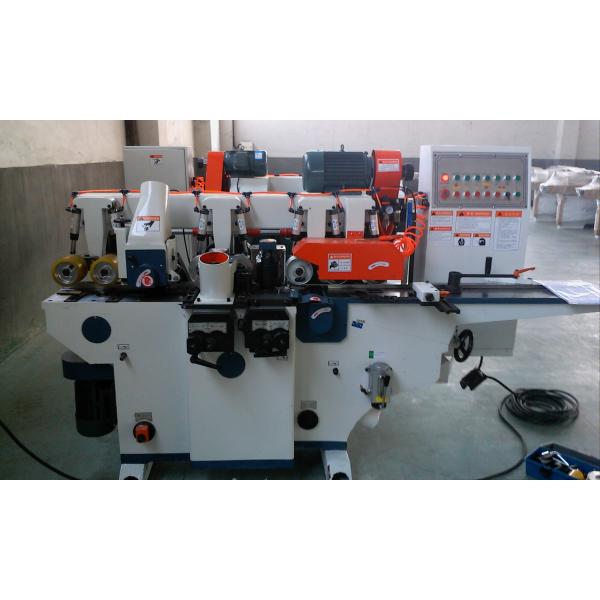

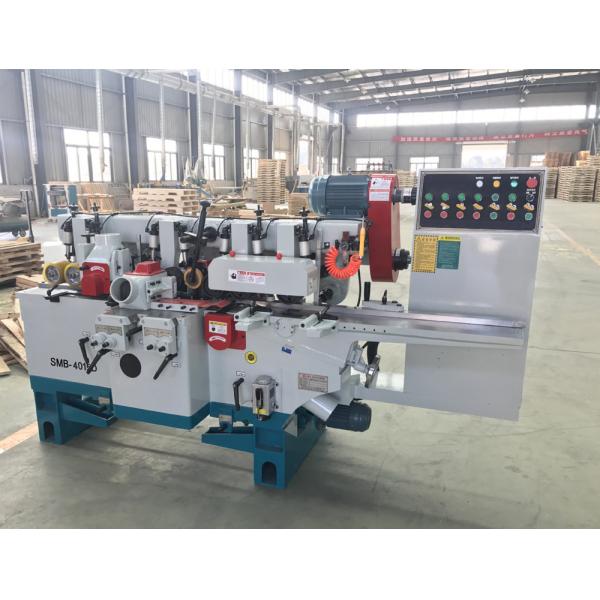

Four side planner pictures:

Model	SMB-4013	SMB-4015
Working width	20-130mm	20-150mm
Working thickness	8-100mm	8-100mm
Feeding speed	5-20m/min	5-20m/min
Feeding power	1.5kw	2.2kw
Knife speed	6000r/min	6000r/min
Lower horizontal shaft power	2.2-2.3kw	2.2-2.3kw
Upper horizontal shaft power	4kw	4kw
Right side vertical knife arbor power	2.2kw	2.2kw
Cross beam lifting and lowering power	0.37kw	0.37kw
Total power	12.47kw	14.77kw
Max.turning circle	115mm	115mm
Total weight	1400kg	1400kg
Packing size	250014001800mm	250014001800mm

4 sided molder cross table for milling

4 sided molder cross table for milling Images
